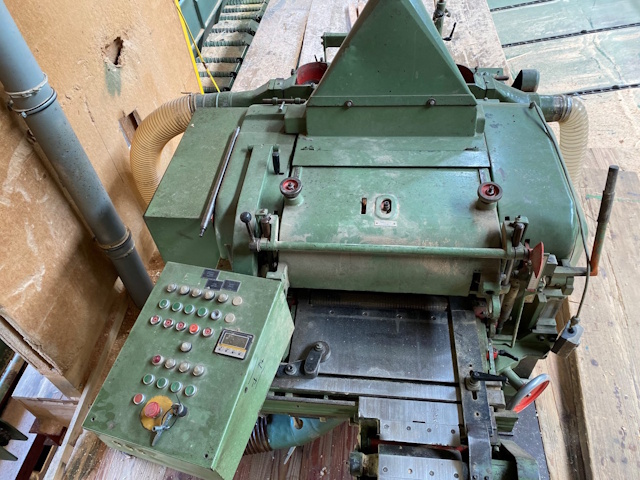

Copper grinder VUIN 605 constant table
Preis auf Anfrage
zzgl. Versandkosten
Additional information
| Weight | 0,00 kg |
|---|---|
| Maschinentyp | 4-Seiten-Universalhobelmaschine |
| Hersteller | KUPFERMÜHLE |
| Modell | VUIN 605 |
| Farbe | grün |
| Vorschubgeschwindigkeit | 7 – 23 m/min |
| Anzahl der Spindeln | 5 |
| Zustand | gebraucht |
| Vorschubmotor | 3.0 kW |
| Spindel 1 (unten) | 7.5 kW |
| Spindel 2 (oben) | 11.0 kW |
| Spindel 3 (links) | 11.0 kW / 40 mm |
| Spindel 4 (rechts) | 11 kW / 40 mm |
| Spindel 5 | 15 kW |
verfügbare Stückzahl: 1
Wide planer
constant table
Planing width max. 605 mm
Planing height 2-sided 200 mm
Planing height 4-sided 200 mm
Feed rate 7 – 9 – 11.5 – 14.0 – 18.0 – 23.0 m/min
OPTION Feed speed up to approx. 50 m/min
Motors
Planer shaft bottom 7.5 kW
Planer shaft top 11.0 kW
Vertical spindle right 11.0 kW / D 40 mm
Vertical spindle left 11.0 kW / D 40 mm
5th shaft horizontal 15.0 kW
Feed 2.4 / 3.0 kW
Thickness 1.1 kW
Planing shafts with 6 knives
3 knives are sufficient for feed speeds up to 24 m/min
3 knives are working and 3 sharp knives are in reserve position
Additional unit 5th working shaft horizontal 15 kW
Pull-out unit Roller width 350 mm
Machine is sold in condition A or B or C
A) as is
B) repaired
C) repaired and new electrics
OPTION
Pre-planer at the infeed of the machine with planing head width 200 mm
and motor 3.5 kW
